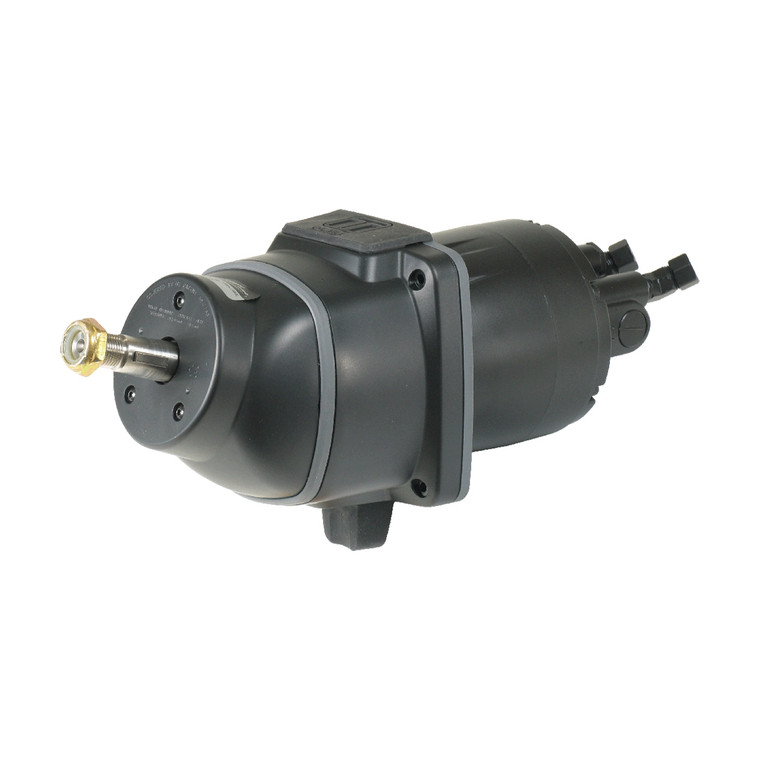

Dometic SeaStar Pro HH5774 Adjustable Tilt Hydraulic Helm Pump - 2.0 cu in, 1500 PSI

Nothing gets you closer to power steering!

The Dometic SeaStar® Helm Pump is an axial piston pump specifically designed for manual steering. Every load bearing point within the helm pump runs on either a roller or ball bearing race for super low friction, smooth, positive steering. It has a built-in lock valve to prevent the steering load from feeding back to the driver. The lock valve will not allow the rudder or drive unit to move until you apply load by turning the steering wheel. The lock valve section of the helm also includes a relief valve. This relief valve provides over pressure protection for mechanical components, hydraulic hoses and fittings.

Five wheel positions allow adjustment for most comfortable steering position

48º tilt range (18? down - 30? up)

103 bar (1500 psi) relief valve setting

33cc (2.0 cu/in) displacement

Convenient front of dash filling point

Complete with elbow fittings

Maximum steering wheel diameter is 510mm

Balanced hydraulic systems only

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 291542

Please compare the product code and specifications with the required application before ordering.
