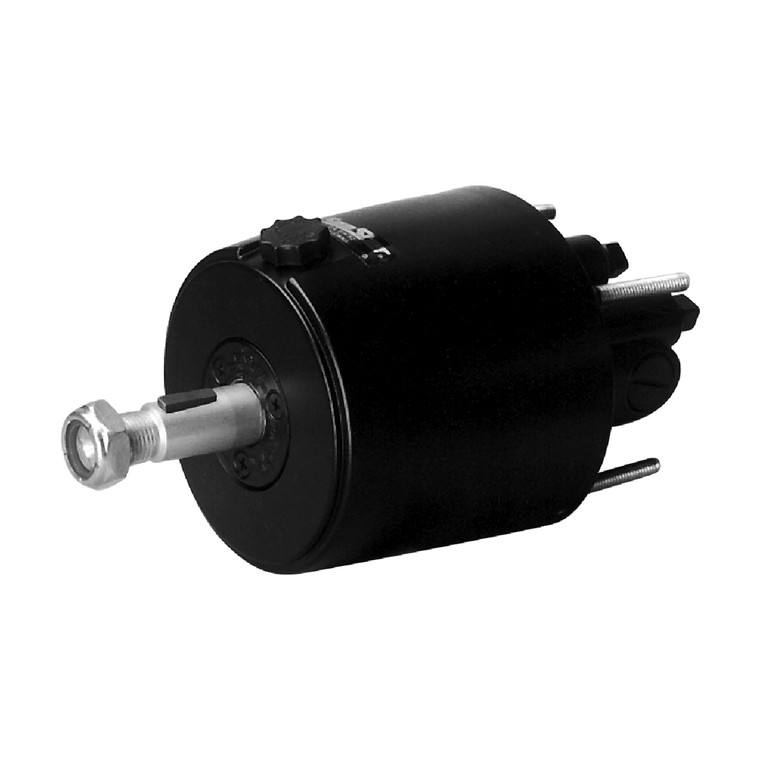

Dometic SeaStar Pro HH5770 Front-Mount Hydraulic Helm Pump - 2.0 cu in, 1500 PSI

Nothing gets you closer to power steering!

The Dometic SeaStar® Helm Pump is an axial piston pump specifically designed for manual steering. Every load bearing point within the helm pump runs on either a roller or ball bearing race for super low friction, smooth, positive steering. It has a built-in lock valve to prevent the steering load from feeding back to the driver. The lock valve will not allow the rudder or drive unit to move until you apply load by turning the steering wheel. The lock valve section of the helm also includes a relief valve. This relief valve provides over pressure protection for mechanical components, hydraulic hoses and fittings.

Unique lock valve provides instant steering response without loss of engine feel and comfort

Small 76mm hole cut out in dash

Can be retro-fitted into old Dometic SeaStar® 115mm hole cut out (use 291908 mounting kit)

33cc (2.0 cu/in) displacement

Maximum steering wheel diameter is 660mm

103 bar (1500 psi) relief valve setting

Convenient front of dash filling point

Complete with straight fittings

Balanced hydraulic systems only

Accessories 291908 Back plate kit

291906 20º wedge

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 291540

Please compare the product code and specifications with the required application before ordering.
