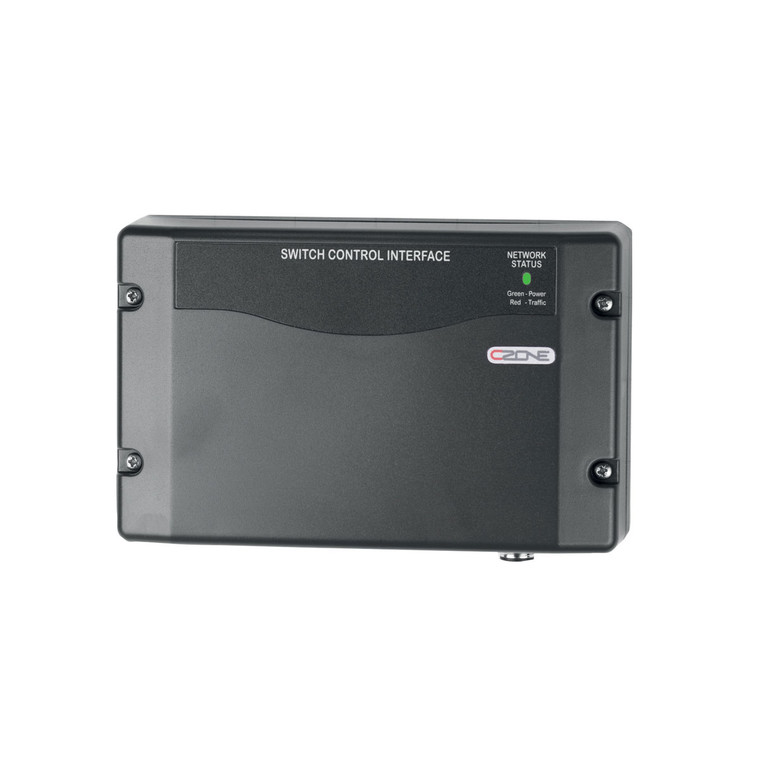

CZone Switch Control Interface - Digital Switching Module

The Switch Control Interface (SCI) provides an interface between the CZone™ network and traditional mechanical switches that manufacturers and users are familiar with. The SCI simplifies your wiring, supports your existing choice of switches, protects against failures and allows for expanding installation options.

Features • Single switch position can control multiple OI channels

Attaches to switch panels via custom SCI cable

Multiple SCI switches can control single OI channel

Output for backlighting of switch labels (dimmable)

Outputs systems on and function/fault codes to systems on LED of switches (dimmable)

Dimensions, WxHxD 156x100x42mm

IPX5 water ingress protection

8 inputs per module (16 individual controls)

Programmable switch types

Sequential button press functionality

Product code: 112824

Please compare the product code and specifications with the required application before ordering.
