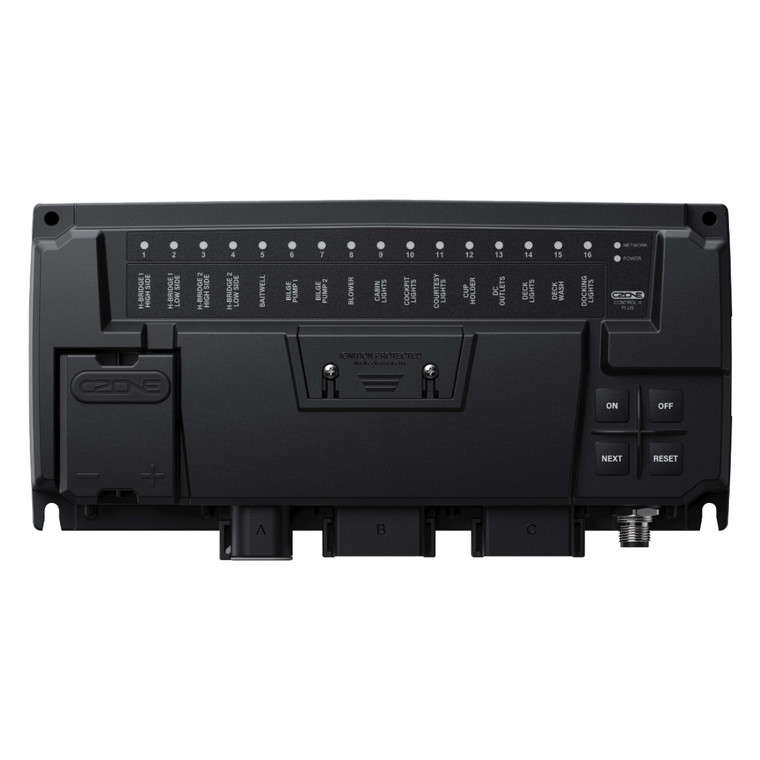

CZone Control X Digital Switching Interface

COMING 2022...

Control X is CZone's smartest and sleekest module, and the first with a fully waterproof enclosure. Configurable input and output channels provides ultimate flexibility to optimise system design and installation. Control X uses the latest smart MOSFET switching technology providing improved reliability, and silent operation. such as multiple RGB lighting control zones, reversing motor H-bridge outputs and wiper motor synchronization eliminates the need for 3rd party controllers giving installers complete flexibility to configure the modules to specific requirements.

Features & Benefits

Ignition Protected IPX7 waterproof enclosure

RGBW light controller

Wiper motor control with synchronization

Configurable I/O channels for ultimate flexibility

Current monitoring with software fusing

Manual override touch panel

Multiplex switch inputs

Moulded in Deutsch receptacles

Additional Features

Configurable input and output channels.

100% solid state Smart MOSFET switching technology

Provides improved reliability, silent operation & smaller footprint than traditional relays.

Current monitoring with automatic software fusing protection removes the need to purchase and install physical fuses.

45% smaller footprint than COI/Control 1 with flexible configuration options.

Built in RGB controllers means seamlessly integrated

lighting controls, with the ability to have independently operated lighting zones.

Dual speed wiper motor controller with wiper synchronization for up to 4 motors per module and 3 configurable intermittent timer settings.

Automatic bilge pump running detection on all output channels

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 112825

Please compare the product code and specifications with the required application before ordering.
