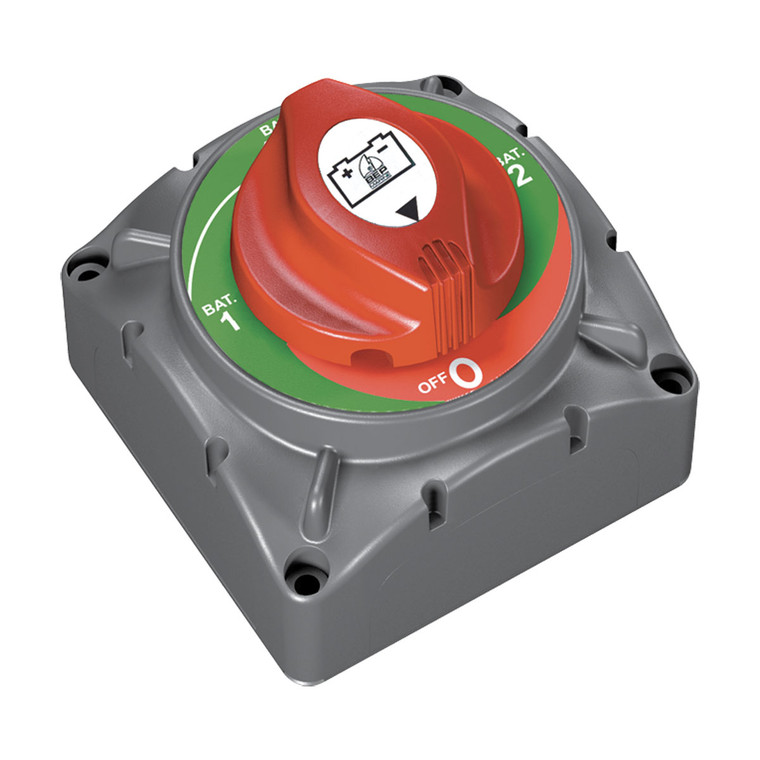

BEP Heavy-Duty 4-Position Battery Selector Switch - OFF/1/BOTH/2 - 48V Max

The 721 heavy duty selector switch provides four possible operation settings, Off, Battery 1, Both and Battery 2 giving the choice of charging a selected battery or isolating current draw to a single battery. The switch can be recess mounted in a 85mm hole or surface mounted. Screw holes 5mm roundhead. Removable rear cover insulates the rear terminals against short circuit and removable side plates provide access for heavy duty battery cables. Please note this system will not protect electronics from harmful engine starting spikes.

Specifications • Continuous rating 350 amps DC between common and B1 or B2

500 amps DC between common and B1 and B2

Intermittent rating 500 amps DC

Cranking rating 1500 amps DC for 10 seconds

Voltage rating 48 volts DC maximum

Terminal stud size 3 x 10mm

Product code: 113556

Please compare the product code and specifications with the required application before ordering.
