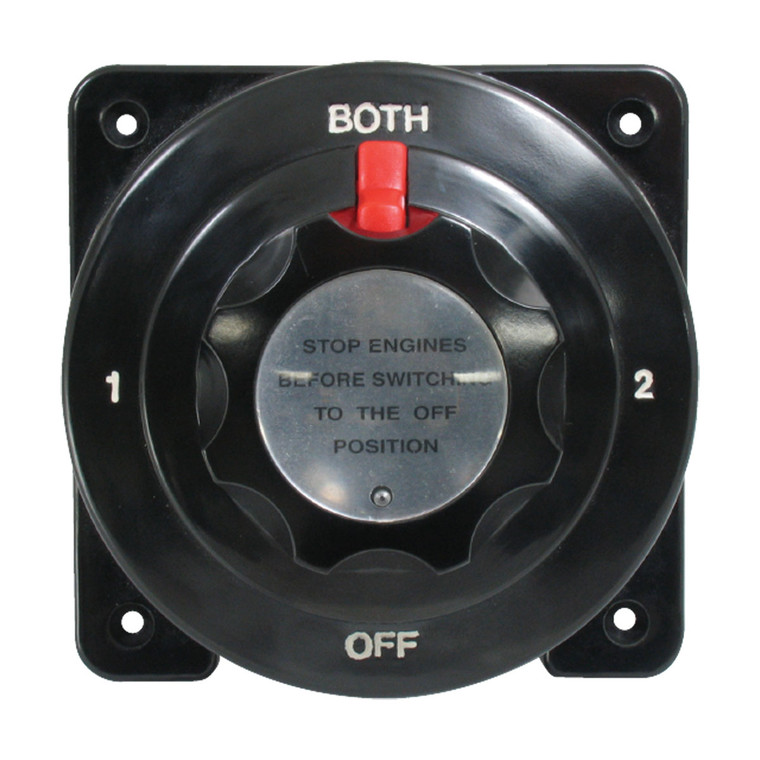

Battery Selector Switch - OFF/1/BOTH/2 - 235A - 6x32V

Battery selector switch with off/1/both/2 positions. Enables isolation of one battery or battery bank from the other, or link up both batteries in parallel for additional power. Engines must be shut down before turning to 'off' position. Rotary dial has a spring loaded keeper to positively lock the selected position. Designed to be surface mount with cable entry from below.

Specifications • Voltage 6-32V?DC

Continuous Rating

235 amps

Intermittent Rating

300 amps

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 114304

Please compare the product code and specifications with the required application before ordering.
