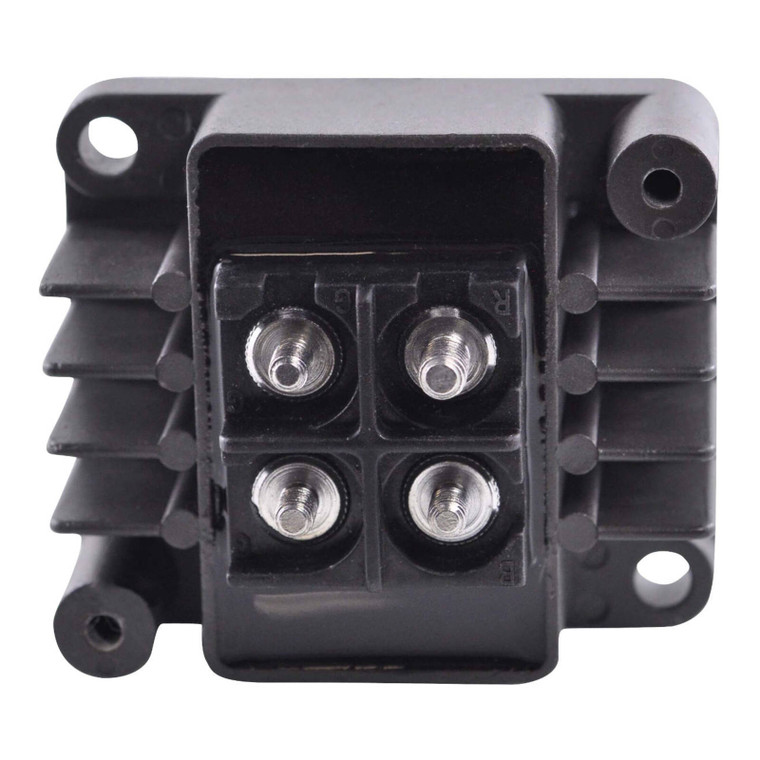

Regulator Rectifier for 1984-1989 Yamaha ETL 20 " 115 HP

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play direct fit easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• W idth: 70 mm
• Length: 82 mm
• Height: 29 mm
• Fixation holes center to center: 88 mm

Other specifications:

• Number of pins: 4
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Note: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt have the battery load tested or replaced.
