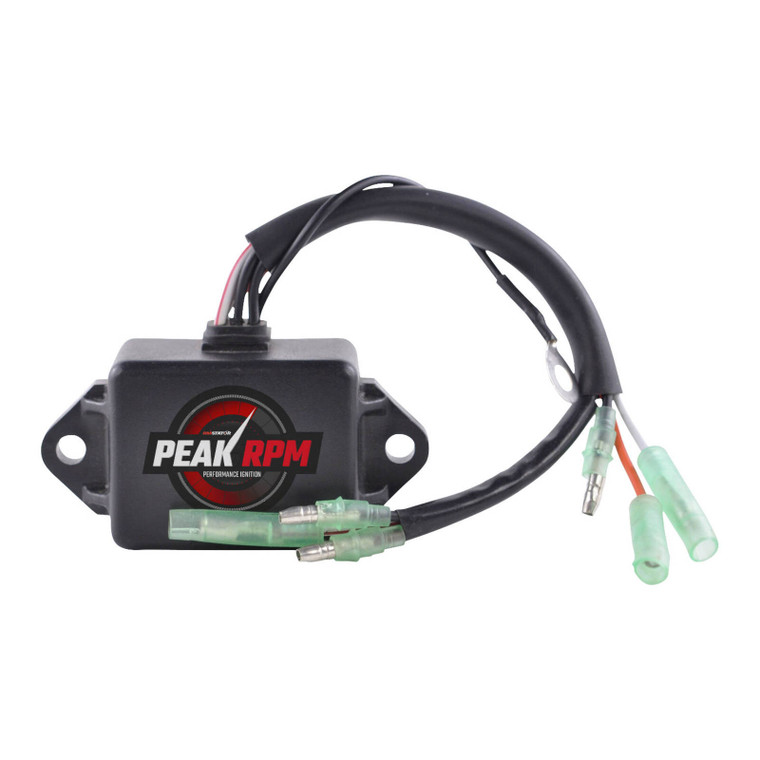

CDI for 1996-2000 Yamaha 30HP 2T

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play direct fit easy installation
• No assembly required
• Higher-grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions:

• Width: 80 mm
• Length: 90 mm
• Height: 26 mm
• Wires length: 280 mm
• Fixation holes center to center: 65 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°
