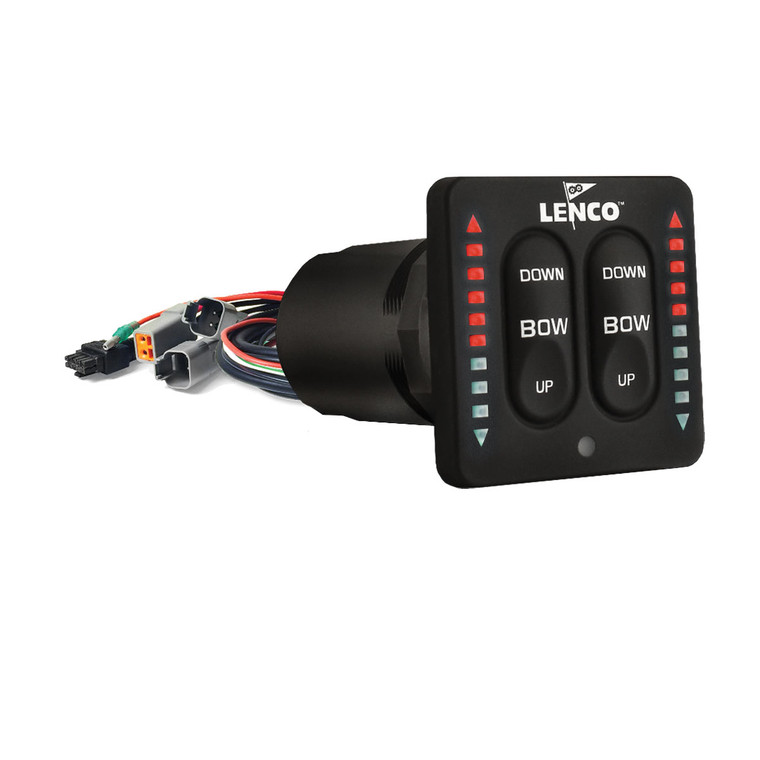

Lenco Integrated LED Trim Tab Switch Kit - Dual-Actuator Systems - 12/24V

Single & Dual Actuator Systems - 312806 | Complete your Lenco single actuator trim tab system with the latest, maintenance-free, LED Indicator (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

Features •  Simple, quick, plug & play installation

   Instant response

   Built-in retractor

   Low profile key pad design

   Self-contained key pad with waterproof Plug & Play Deutsch connectors

   Wiring harness length 76.2 cm from the back of the switch bezel

   0.9m Power pigtail

   52mm Hole cut-out size, overall key pad size of 70mm x 70mm

   103.6mm Clearance required from the back of the key pad's mounting location

   2 High-intensity LED Indicator displays show the exact position of your trim tabs at all times

   Photo eye for optimum viewing in all light conditions

   Backlit key pad for optimum viewing at night

   Self-check feature

   3 Year warranty

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 312806
