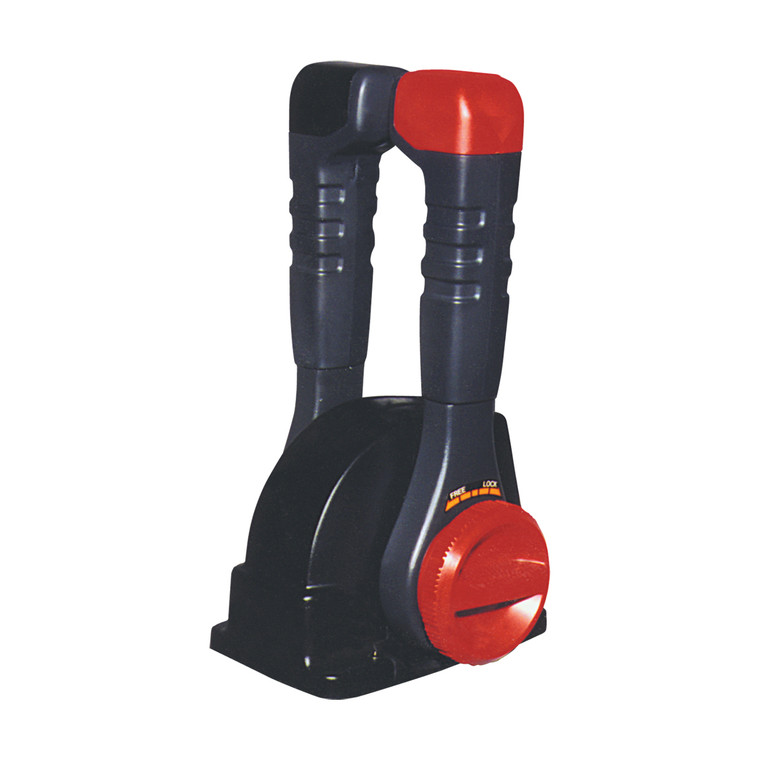

NHK MEC KB-Series Top-Mount Electronic Engine Control - 306895

Single Function Control A compact and durable top mount control with modern design and functional characteristics. Suitable for inboards with hydraulic gearboxes, outboards and stern drives.

Features • Single function, single or twin levers

One handle for gear, one handle for throttle

Available as throttle only, or as gear and throttle

The throttle brake, incorporated as standard, is simply applied by turning the knob at the base of the handle to the desired setting

Can be used for dual station installations. Both stations move together, although care must be taken to avoid operating one station if the other is firmly dampened down. Extra fittings required for dual stations are listed below

Detents for forward/neutral/reverse incorporated in control

Plastic body and hanger plate with metal moving parts. Especially suitable for engines with heavy governor load (i.e. Gardner diesel)

Cables Accepts universal 30/33 series Cables, CC230, CC330, CC332, CX632 and CCX633. Fittings for these Cables supplied with control. KB controls will not accept 40/43 series Cables.

Materials • Plastic body and hanger with enclosed die-cast zinc alloy and zinc plated metal mechanism

Suitable for exposed installation

Accessories 306896 Dual station kit (per lever)

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 306895

Please compare the product code and specifications with the required application before ordering.
