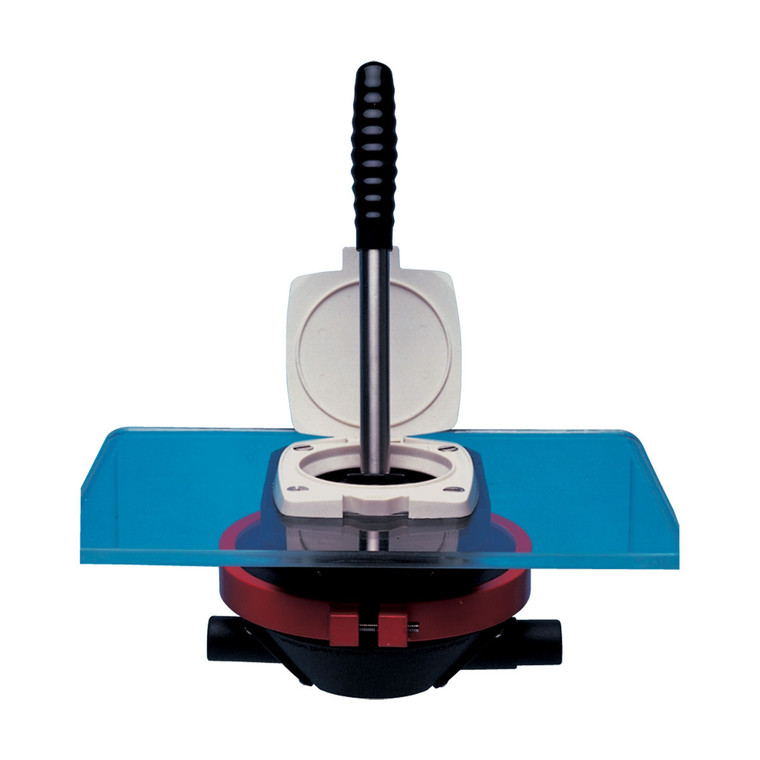

Henderson Compac 50 Manual Marine Pump

Designed specifically for low profile installations where space is limited. Quick and easy to fit and offers a wide variety of possible installation configurations. Suitable for saltwater, bilge water and even diesel. Constructed from stainless steel, glass reinforced polypropylene, acetal copolymer, nylon, PBDT, nitrile and EPDM rubber.

Features • Mounting hole positions are square - giving a choice of pump stroke directions relative to the position of the deckplate

Inlet and outlet mount bases are set at 45° relative to the pump body and have a square base that can be rotated, giving four possible hose directions on each side

Pump body can be rotated to accommodate different hose direction requirements

Supplied complete with deck plate

Spare Part s

131230 Service kit - nitrile

131231 Deck plate kit

131232 Spare removable handle

131236 Ring clamping kit

131237 Rubber grip

131238 Diaphragm

131239 Rocker arm

131258 Valve inlet

131259 Valve outlet

131234 Deck plate kit rocker arm

N.B. Capacity measured at 70 strokes per minute

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 131012

Please compare the product code and specifications with the required application before ordering.
