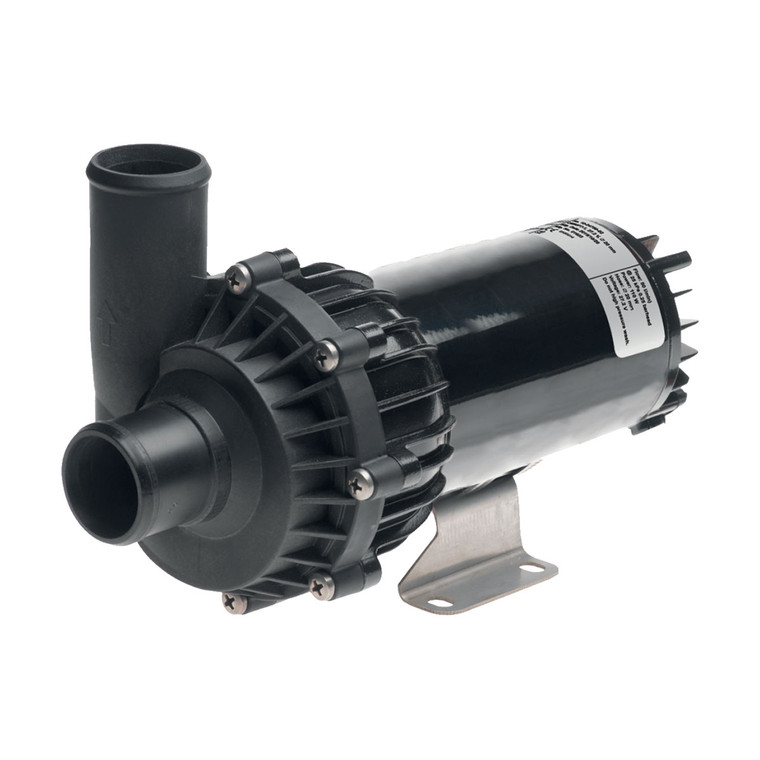

SPX Johnson Pump Flexible-Impeller Marine Centrifugal Pump - 132764

Specifications • System pressure -0.3 to +3.0 bar; stationary max. 4.0 bar

Liquid water/glycol mixture; max. 60% glycol, fresh and saltwater

Motor service life More than 5,000 hours at nominal voltage 10,000 start/stops. Interchangeable motor

Motor voltage Nominal 13.6V DC for use between 10-16V, Nominal 27.2V DC for use between 20-32V

Input power Max. 125W

Dry running 30 minutes

Dimensions 244 mm (L) x 120 mm (W) x 150 mm (H)

Ports Ø 20 mm (3/4") & Ø 38 mm (1 1/2")

Weight 3.0 kg

Body PPA, glass-fibre reinforced

Mounting Separate universal bracket for flat surfaces

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 132764

Please compare the product code and specifications with the required application before ordering.
