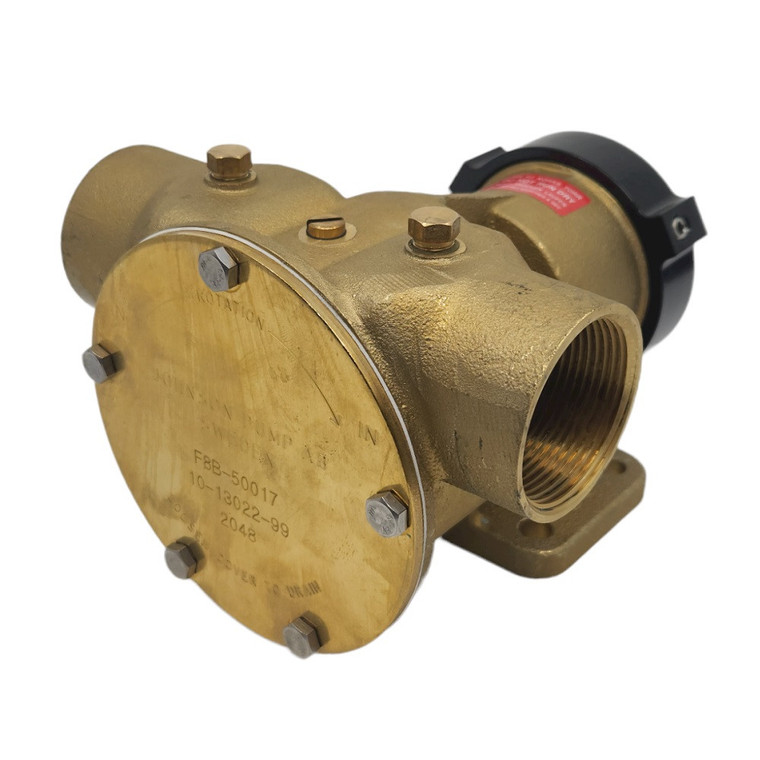

Electro Magnetic Clutch Pump F8B-5001 - 10-13022-99

The Electro Magnetic Clutch Pump F8B-5001 - 10-13022-99 is a marine plumbing component for installation or replacement work.

Product information

• SPX Johnson - 10-13022-99 - Heavy Duty Electro Magnetic Clutch Pump - F8B-5001
• With an Electro-Magnetic Clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
• The Heavy Duty range of multi-purpose bronze pumps are raw water resistant and have a compact design. These pumps are designed for a number of applications onboard and have gained a time-tested reputation for quality and reliability.
• F x B -8 = F lexible Impeller Pump, B ronze body, 8 = General purpose with double ball bearings and lip seal
• Ideal as cooling water pumps for marine engines, bilge pumps, deck wash pumps, freshwater pumps, fuel-transfer pumps and other applications.
• Specifications
• Impeller: 09-819B
• Connection: 1 1/2" BSP threaded
• Length: 225mm
• Width: 160mm
• Height: 124mm
• Weight: 9.9kg
• Flow Rate: 279LPM @30KPA and 2000RPM

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
