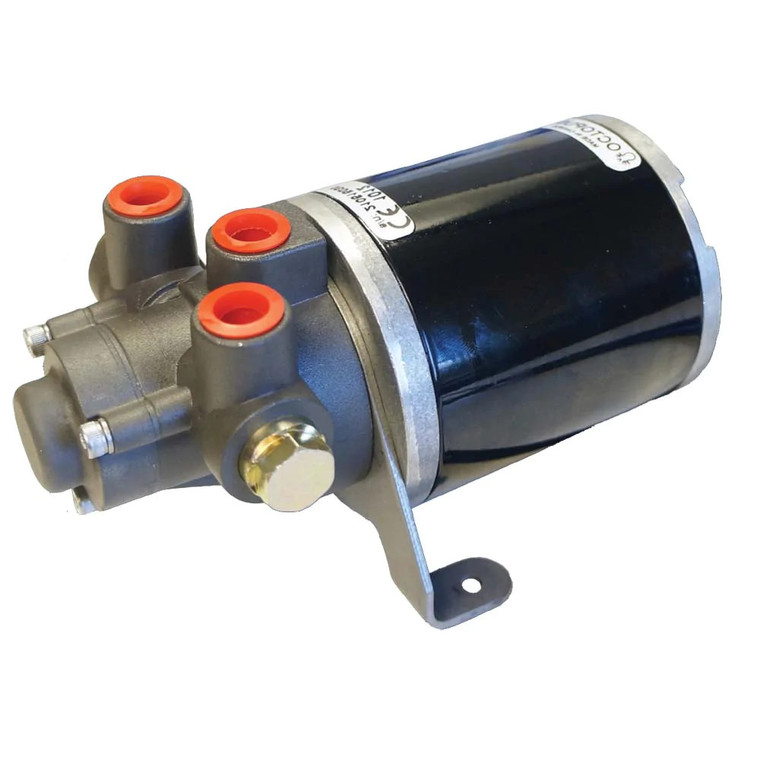

Hydraulic Reversing Gear Pump - 1600cc 24V

The Hydraulic Reversing Gear Pump - 1600cc 24V is a Octopus marine product for the application or purpose described below.

Product information

• Octopus - Hydraulic Reversing Gear Pumps - 1600cc 24v
• Hydraulic Reversing Gear Pumps Offer Industry-Leading Reliability and Performance in a Smaller, Lighter, Quieter Package.
• autopilot course computers than equivalent drive units.
• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.
• Suitable for balanced or unbalanced cylinders.
• Hydraulic Ports: 1/4" NPT
• Voltage: 24v
• Max Pressure: 55 bar
• EMC Compliance to: EN 60945:2002
• Ignition Protection to: EN ISO 8856:2017/ISO 8846:1990 SAE J1171
• Motor Protection: IP55
• Motor Type: Permanent Magnet
• Environmental: RoHS 2 Compliant | 2011/65/EU & EU/2015/863
• Motor Brush life: 4000+ hrs under normal use
• Lead Wire: 650mm Long: UL1015 105°C AWG#16 (1.5mm2)

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
