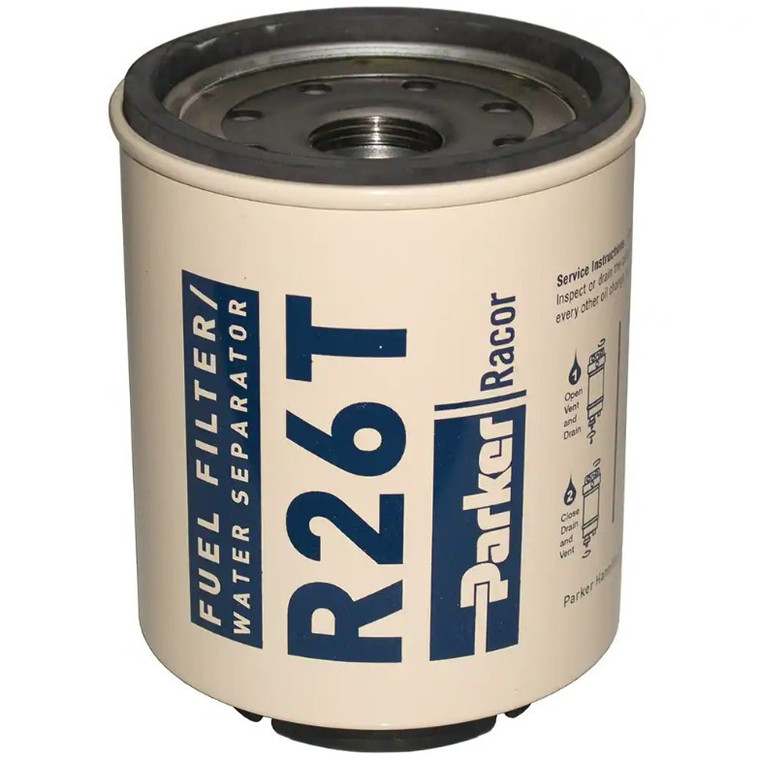

Element 225 Series 10 Micron - R26T

The Element 225 Series 10 Micron - R26T is a Racor marine product for the application or purpose described below.

Product information

• Racor - R26T - Replacement Fuel Filter Element - 10 Micron
• 10 Micron Aquabloc Spin-on Element for 225R Series
• The filter body is protected with a durable electrostatically-applied powder coating for superior corrosion resistance. The spin-on filter design is simple to service and features a reusable clear engineering plastic or metal contaminant collection bowl with a self-venting drain for draining out collected contaminants and water.
• Aquabloc® elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. To meet the unique requirements of customers’ engines, three different micron ratings are available for purchase, including
• 30 micron – Ideally suited as a pre-filter to protect downstream filters from excessive contamination. Extends the life of on-engine filters.
• 10 micron - Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.
• 2 micron – Provides maximum water removal and filtration and is capable of protecting all modern injection systems, while greatly extending the life of difficult-to-service on-engine filters. Technical Specifications
• Filter Element Type: 10 Micron Aquabloc® Spin-on
• Thread Size: 1"-14
• Connection Type: 1.25" Female Bottom Threads
• Outside Diameter: 3.8" (97 mm)
• Height: 4.7" (119 mm)
• Product Series: 225R Center Thread Bowl
• Micron Rating: 98% @ 10 Micron ?m
• Specifications Met: No
• Related Parts: Clear Bowl: RK 20135

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
