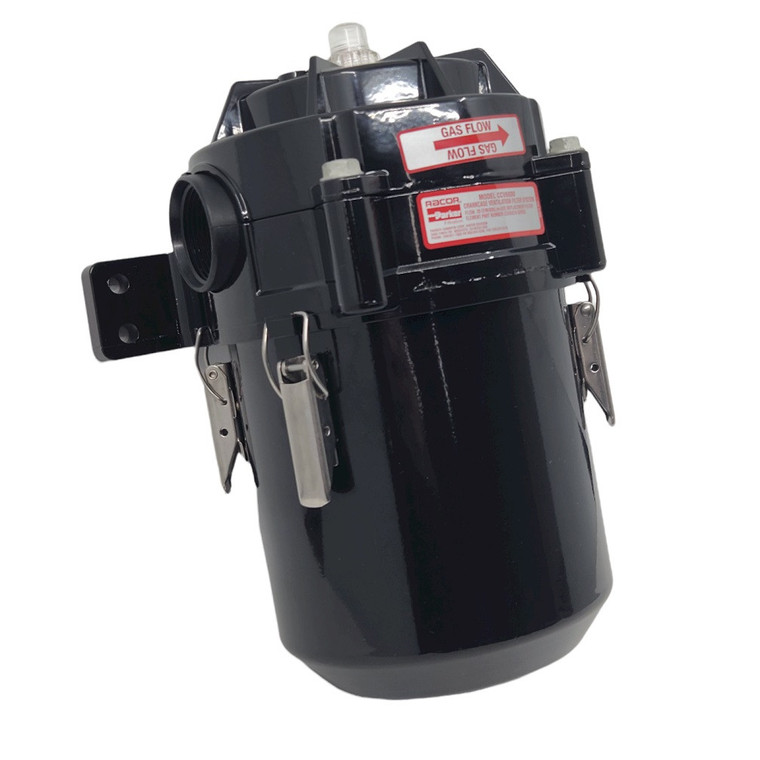

Crankcase Ventilation System - CCV6000-08R

The Crankcase Ventilation System - CCV6000-08R is a Racor marine product for the application or purpose described below.

Product information

• Racor - CCV6000-08R - Crankvase Ventilation System - Closed
• Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.
• The systems have stainless steel latches for tool-less element change and a metal housing (steel for the 4500 unit and aluminum for 6000, 8000 & 12000 units) with an epoxy powder coating. They also have a drain check valve, which allows collected oil to return to the crankcase, resulting in drastically reduced oil consumption.
• CCV Series (Closed Crankcase Ventilation Systems) - Racor's CCV (closed) systems also utilize depth-loading, micro-glass fiber Vaporbloc™ media. In these systems, blow-by gasses are not allowed to vent to the atmosphere. Instead, the cleaned and filtered gases are routed back to the inlet of the turbocharger to be burned in the engine. The units are designed to handle crankcase flow rates up to 50 cfm (1.42 m3/m) or more when using multiple units. CCV units feature a unique crankcase pressure regulator with an integral bypass valve. This regulator protects against crankcase over-pressure and under-pressure, thus preventing damage to seals and oil loss.
• Technical Specifications
• Maximum Flow Rate: 20 cfm / 0.57 m3/m
• Maximum Output: 800 HP / 600 kW
• Product Series: Cartridge Crankcase Ventilation, CCV6000
• For Fluid Type: Engine Blowby Gas
• Compatible Element: High: CCV55274-08, Ultra: CCV55274-10
• Port Size: 1-5/8", 12 SAE
• Drain Kit: Hose, Check Valve, (2) Swivel Fitting
• Materials of Construction: Die cast head, glass filled nylon and black powder epoxy-coated aluminium bowl
• Pressure Regulator Type: Integral crankcase pressure regulator
• Width: 8.6 inches (21.8 cm)
• Depth: 7.3 inches (18.5 cm)
• Height: 12 inches (30.5 cm)
• Heat Type: 100W Optional: CCV55462 (120VAC) CCV55462-12 (12VDC) CCV55462-24 (24VDC)

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
