Honda Genuine 200 Hour Service Kit for BF115-150 - 06510-ZVT-020

The Honda Genuine 200 Hour Service Kit for BF115-150 - 06510-ZVT-020 brings together the listed components for servicing the compatible marine application.

Product information

• 06510-ZVT-020 Genuine Honda 200 Hour BF115-150 Service Kit
• Keep your Honda outboard engine performing at its best with this Honda Genuine OEM 200-Hour Service Kit, specifically designed for the BF150D, BF135D & BF115J. This essential maintenance package includes critical anodes, fuel system components, and sealing parts to help protect your engine from wear and corrosion during routine 200-hour service intervals.
• Suits Honda Outboards: BF150D, BF135D & BF115J
• Ideal for 200-Hour Service Intervals
• Kit Contents & Quantities
• #1 – 06411-ZW1-020 – Bracket Anode (Includes Bolts) – x1
• #3 – 15400-RTA-003 – Oil Filter (S-18-7909) – x1
• #4 – 19210-ZW1-B04 – Impeller (HJ-HJB-J-3023 / S-18-3250) – x1
• #5 – 19223-ZW1-B00 – Water Pump Cup – x1
• #6 – 19231-ZY6-000 – Impeller Plate – x1
• #7 – 19234-ZY6-000 – Impeller Plate Gasket – x1
• #8 – 19253-ZW1-B01 – Water Pump Tube Seal – x1
• #9 – 19300-ZY3-023 – Thermostat – x2
• #10 – 19300-ZY6-003 – Thermostat – x1
• #11 – 19318-ZY6-003 – Thermostat Cover Gasket – x1
• #12 – 19319-ZY6-010 – Thermostat Spacer Gasket – x1
• #13 – 41109-ZW1-B00 – Side Pod Anode (CM41109ZW1B00A) – x2
• #14 – 90101-ZW9-003 – Oil Check (Fill) Bolt – x1
• #15 – 90120-ZY3-000 – Drain Plug Bolt – x1
• #16 – 90205-ZY1-000 – M6 Nut – x1
• #17 – 90601-ZE2-000 – 12mm Drain Plug Washer – x1
• #18 – 90752-ZW1-B02 – Woodruff Key – x1
• #19 – 90756-ZVL-000 – Dowel Pin – x2
• #20 – 90758-ZW1-B00 – Split Pin (4mm) – x1
• #21 – 91301-ZW4-003 – O-Ring (6.9 x 1.45mm) – x2
• #22 – 91356-ZW1-B00 – Water Pump O-Ring – x1
• #23 – 92101-060504J – Bolt No Flange (M6 x 50mm) – x1

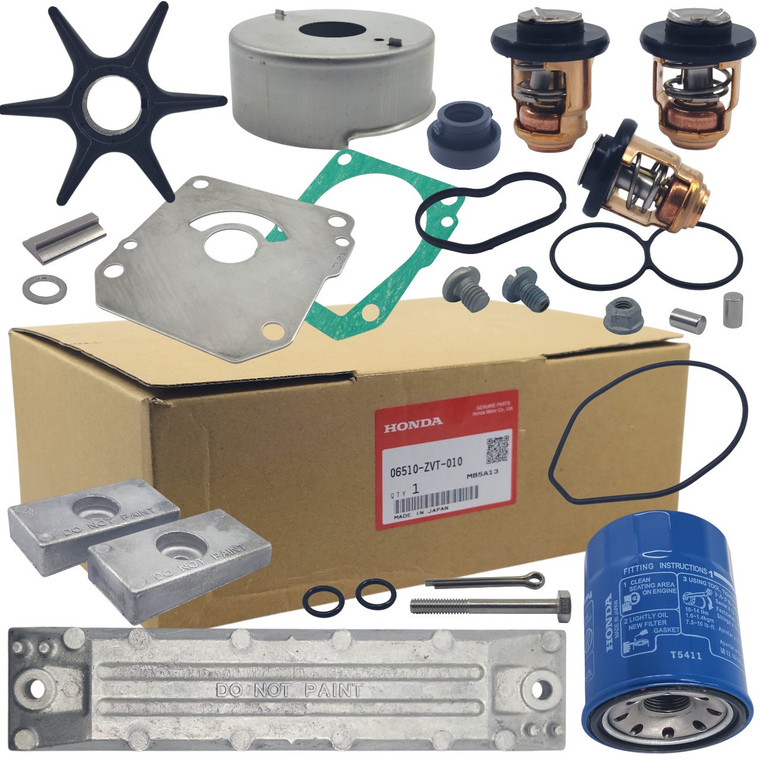

• Total Components: 23 pieces (See diagram below)

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
