Honda Genuine 200 Hour BF75-100 Service Kit - 06510-ZY9-010

The Honda Genuine 200 Hour BF75-100 Service Kit - 06510-ZY9-010 brings together the listed components for servicing the compatible marine application.

Product information

• 06510-ZY9-010 - Genuine Honda 2 00 Hour BF75-100 Service Kit
• Keep your Honda outboard engine running at peak efficiency with the Honda 06510-ZY9-010 Genuine OEM 200-Hour Service Kit. This comprehensive maintenance package is specifically designed to support regular service intervals and includes everything you need to perform a complete 200-hour water pump and cooling system service.
• Suits Honda Outboards: BF75DK4, BF80AK1, BF90DK5, BF100AK1
• Ideal for 200-Hour Service Intervals
• Kit Contents & Quantities
• #2 – 06411-ZW1-020 – Bracket Anode with 2 Bolts (CM06411ZW1A) – x1
• #3 – 15400-RTA-003 – Oil Filter (S-18-7909) – x1
• #4 – 19210-ZY9-H01 – Impeller (HJ-HJB-J-901) – x1
• #5 – 19223-ZY9-H00 – Water Pump Cup – x1
• #6 – 19231-ZY9-H01 – Impeller Cover Plate – x1
• #7 – 19234-ZW1-B00 – Cover Plate Gasket – x1
• #8 – 19253-ZW1-B01 – Water Pump Tube Seal – x1
• #9 – 19300-ZW9-003 – Thermostat – x1
• #10 – 19300-ZY6-003 – Thermostat – x1
• #11 – 19317-ZW9-000 – O-Rings, Thermostat Cover – x2
• #12 – 41109-ZW1-B00 – Lower Unit Anodes (CM41109ZW1B00A) – x2
• #13 – 90101-ZW9-003 – Oil Fill Bolt – x1
• #14 – 90120-ZY3-000 – Drain Plug – x1
• #15 – 90205-ZY1-000 – Nut (6mm) – x1
• #16 – 90225-HW1-670 – Flange Bolt (6x35mm) for Anode – x1
• #17 – 90601-ZE2-000 – Drain Plug Washer (12mm) – x1
• #18 – 90752-ZW1-B02 – Woodruff Key – x1
• #19 – 90756-ZVL-000 – Dowel Pins (6x10mm) – x2
• #20 – 90758-ZW1-B00 – Split Pin (4.0mm) – x1
• #21 – 91301-ZW4-003 – O-Rings (6.9x1.45mm) for Drain Washer – x2
• #22 – 91356-ZW1-B00 – O-Ring, Water Pump – x1

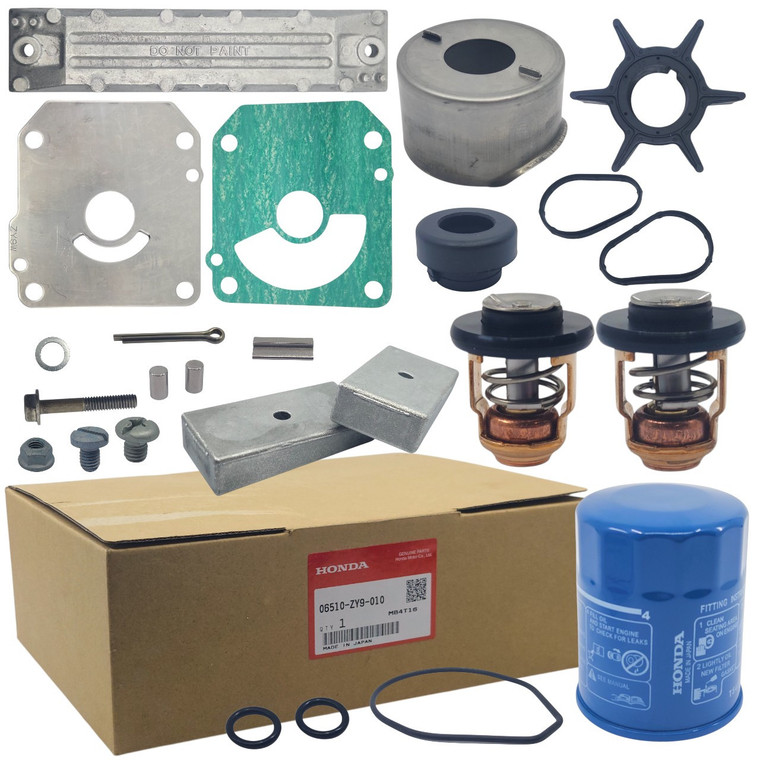

• Total Components: 27 pieces (See diagram below)

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
