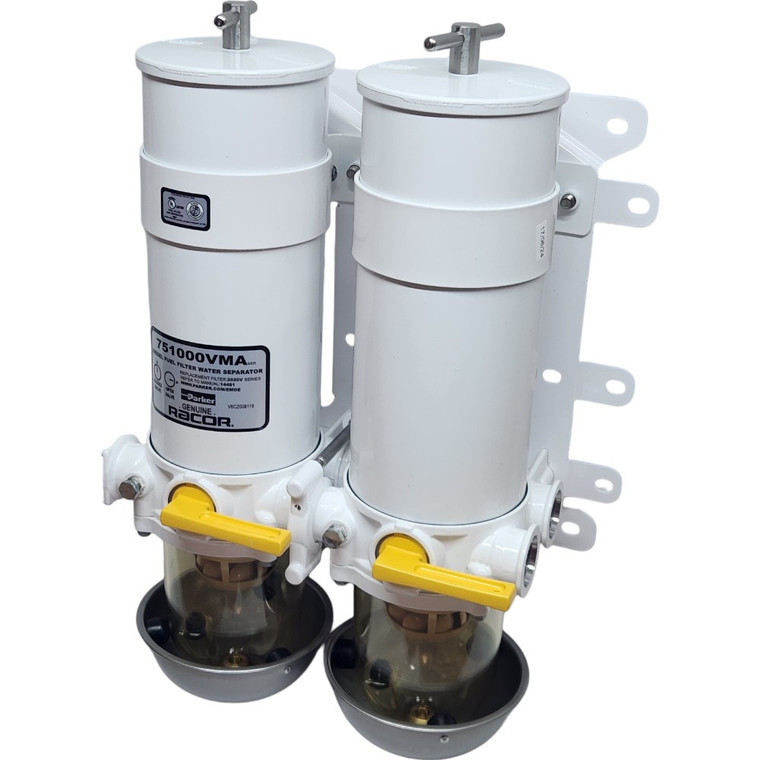

Racor Genuine Dual 1000VMA Fuel Water Separator Assembly - 751000VMA10

The Racor Genuine Dual 1000VMA Fuel Water Separator Assembly - 751000VMA10 is a replacement filtration component for compatible marine applications.

Product information

• Racor - 751000VMA10 - Marine Fuel Filter Water Separator - Racor Turbine Series - Dual Assembly
• Marine duplex 1000 Turbine Series with clear plastic bowl and steel shield and 10 micron filter
• The Racor Marine Fuel Filter Water Separator Turbine Series is the most trusted fuel filter water separator on the market. The UL-approved assembly features a three-stage filtration system that effectively removes water and particulates from fuel, providing maximum protection of diesel engine components in marine applications where reliability is critical.
• 30 micron – Ideally suited as a pre-filter to protect downstream filters from excessive contamination. Extends the life of on-engine filters.
• 10 micron - Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.
• 2 micron – Provides maximum water removal and filtration and is capable of protecting all modern injection systems, while greatly extending the life of difficult-to-service on-engine filters.
• Technical Specifications
• Valve Type: 4-Way Valve
• Flow Rate: 360 gph (1363 lph)
• Connection Type: 1 5/16"-12 UN-2B (SAE 1926-1) 2X 3/4" NPTF Adapters Supplied 2x Port Plugs Supplied
• Micron Rating: 98% @ 10 Micron
• Materials of Construction: Bowl: Clear Engineering Plastic with Stainless Steel Shield
• Product Series: Cartridge FF/WS, Marine Duplex 1000 Turbine
• For Fluid Type: Diesel Fuel / B20
• Mounting Type: Bracket Included
• Number of Housings: 2
• Clean Pressure Drop: 0.26 bar, 3.7 psi
• Pump Type: Electric Primer Pump Option: RKP1912/RKP1924
• Number of Ports: 2
• Filter Element Type: Top loaded element cartridge with 10 Micron Aquabloc® Media
• Compatible Element: 2020N-10 ( Requires 2 )
• Application: Marine fuel filtration
• Materials of Construction: Powder Coated Aluminum Alloy
• Maximum Continuous Pressure: 15 psi / 1.03 bar
• Element Removal Clearance: 10 in / 25.4 cm inch
• Turbine Series - 75900/751000VMA-VMAM Fact Sheet Inc Dimensions

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
