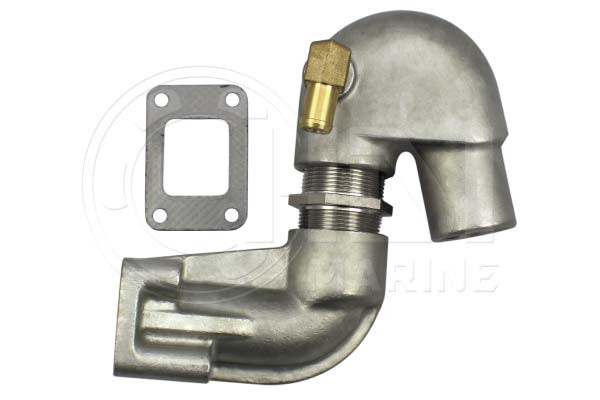

Yanmar Stainless Steel Stainless Steel Exhaust GMKIT

The Yanmar Stainless Steel Stainless Steel Exhaust GMKIT is a replacement exhaust component for compatible marine engine applications.

Product information

• Yanmar Stainless Steel GMKIT Stainless Steel Exhaust - HDI-GMKIT
• This HDI Marine item replaces Yanmar PN 128370-13600 / 128370-13610 / 128270-13600 / 124070-13520 / 128370-13610 / 104214-13521 / 104214-13531 / 128990-13520
• Precision CNC machined investment cast 316 stainless steel
• Includes LH/RH yellow zinc plated stainless steel nipple as shown in photos replaces Yanmar PN 104214-13580
• This assembly is shipped hand-tight, with proper anti-seize applied to the threads. Will need tightened with tools before install.
• Includes bronze hose barb (water connection) that replaces Yanmar PN 124070-13300
• Includes gasket that replaces Yanmar PN 128370-13201
• Gasket size: 44mm x 72mm
• 3/8" pipe thread water inlet (5/8″ hose)
• 2" OD discharge diameter with 1-1/4 BSPT ID
• Product weight 5.5kg
• Fits the following engines: 1GM, 1GM10, 3GM30, 3HM, 3HM35F, 2GM *lower elbow can differ*, GMF, 3HMF, 3GMF, 2GM20 *lower elbow can differ*, 2GM30, 2GM20F *lower elbow can differ*, 3GM30F, YSM12 *lower elbow can differ*, 3GM10, 3GMD, 2GM20, 2GM30, 2GM20F, 2YM-15 *lower elbow can differ*, 3YM-30 *lower elbow can differ*, 3YM-30 *lower elbow can differ*, 3YM-20 *lower elbow can differ* and 3HM35
• *THIS DOES NOT FIT THE QM SERIES ENGINES*
• *PLEASE NOTE THE DIFFERENCE IN THE LOWER ELBOW IN THIS KIT*
• *SOME MODELS OF YM CAN HAVE A SHORTER LENGTH LOWER EXHAUST BEND*

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
