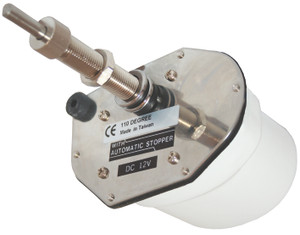

Wiper Afi1000 110D 40 12V

12 volt 40mm shaft length (plus knurled arm nut)

The Afi1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & ; blade combinations up to 450mm (18”) length. 2 drive shaft lengths are available.

Fully waterproof heavy duty motor

Sealed UV resistant thermo-plastic cover

Solid brass 16mm diameter drive shaft and knurled nut

Single speed motor

Coast to park feature. Adjustable right or left park.

RF shielded circuitry

110 Degree sweep angle. Adjustable 50, 65, 80 or 110 degrees

Includes 5amp fuse & ; fuse holder

Full 3 year limited warranty. CE certified. No load current 0.8 to 1.2amp . Stall current 10amp s. Stall torque 63kgf/cm 6.2 Nm Motor Length : 169mm Width : 84mm Depth : 51mm - plus drive arm 12 volt only. 2 shaft lengths are available The Afi1000 wiper motor suits a variety of Afiarms and blades up to 450mm length as shown on following pages of this catalogue. Pantographic arms will only function Properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
