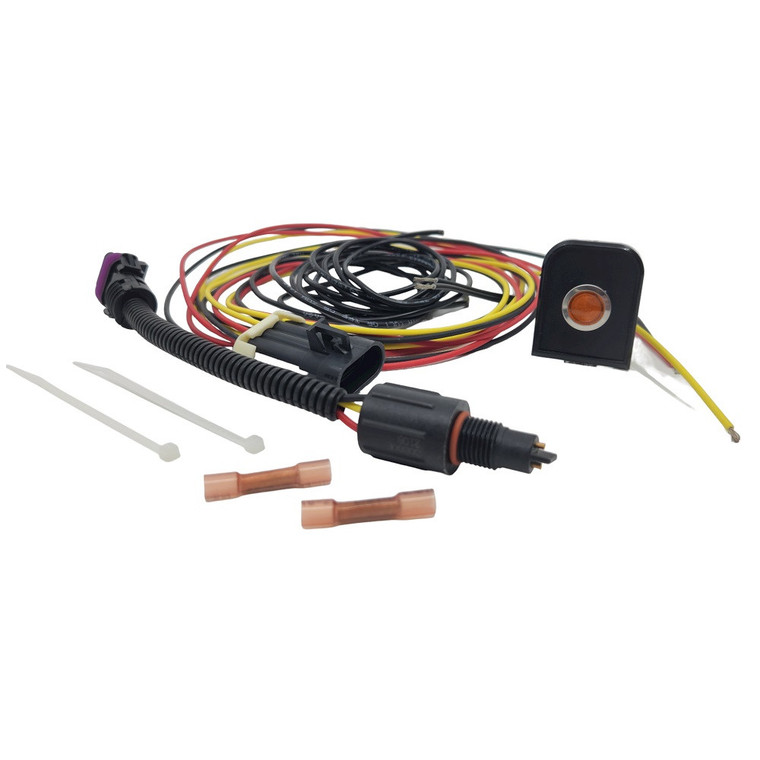

Water Detection Module - RK30880

The Water Detection Module - RK30880 is a Racor marine product for the application or purpose described below.

Product information

• Racor - RK30880 - Water Detection Module
• The RK30880 model features full built-in water detection capability and operates from 12 or 24 vdc.
• These all-in-one WIF sensor have a self-diagnosis feature at each initial power up. The yellow wire sends a 1 to 2 second ground (-) signal to power a lamp or trigger a relay (< 1 amp, max). The units will automatically reset once the water is drained away from the water sensor tips. Wiring instructions are supplied with each water detection module.
• All Racor water sensors are 100% electrically tested and hermetically sealed to keep out moisture and fuel. 1/2-20" threads with the SAE J1926 o-ring seal design.
• 3 wire water sensor with quick disconnect with flying harness

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
