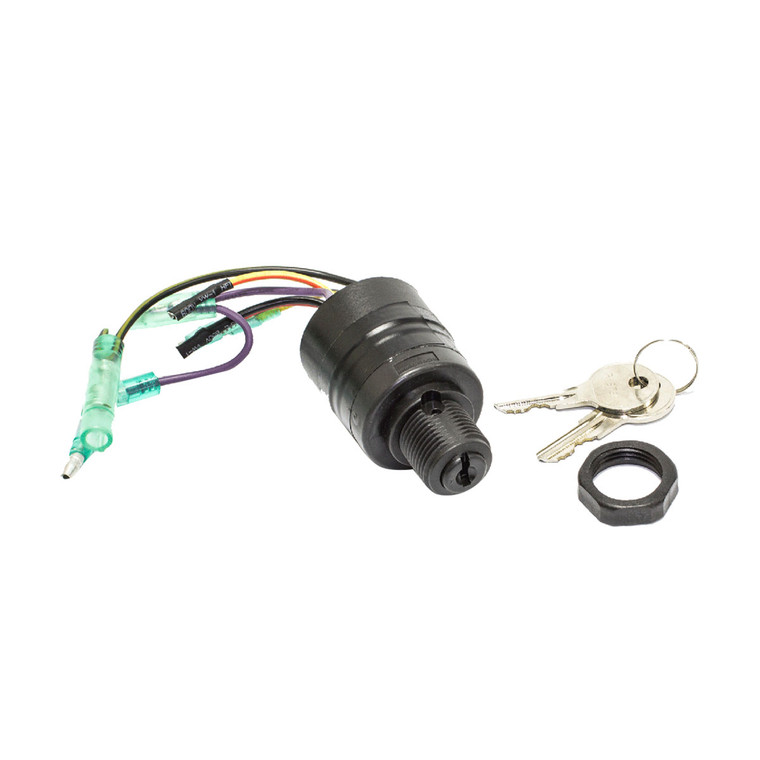

Sierra Three-Position Marine Ignition Switch - SMP51090 - Replaces 87-17009A5

The MP51090 Ignition Switch - 3 Position Magneto is a Sierra marine product for the application or purpose described below.

Product information

• Ignition Switch - 3 Position Magneto - SMP51090
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Polyester
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 6 Color Coded Wire Leads/Potted
• Type: 3 Position Magneto
• Exact OEM replacement installation
• 87-17009A5

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
