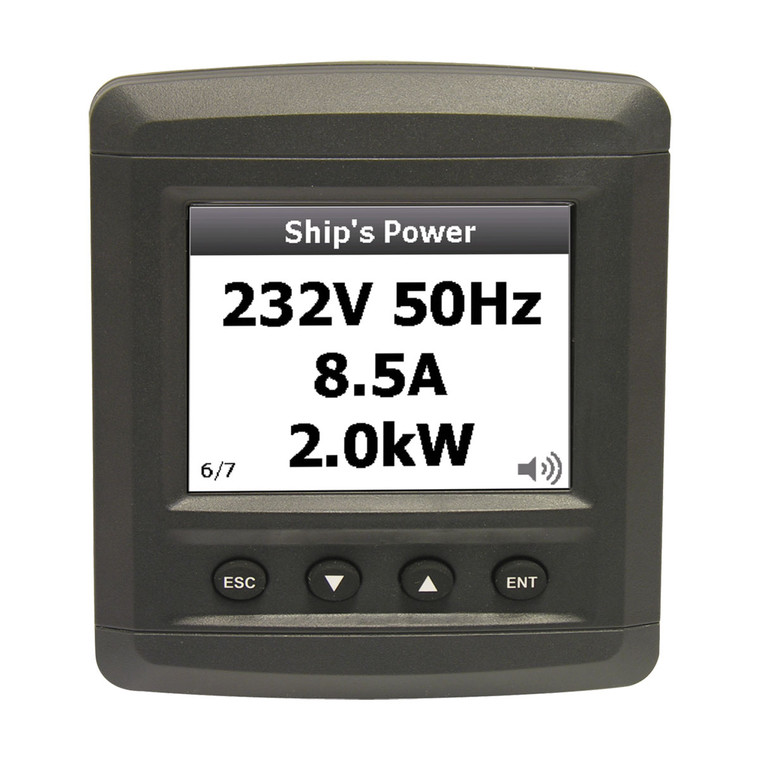

BEP AC Digital Monitoring System - 113418

Designed and manufactured by BEP, this state of the art full colour AC monitor provides a range of system monitoring functions suitable to today’s modern vessels. With the complexities of modern AC electrical installations and the need for a wider array of monitoring combinations the new ACSM provides a functional multi-purpose display system suitable for a variety of applications. The ACSM display Features a clear, extra large type face allowing for more detailed on-screen nformation and increased clarity. The simple menu, positive touch buttons and back lit screen make the multi-function monitoring system easy and intuitive to use. When fitted, the gasket provides a water ingress protection level of IPX5 (Protection against low pressure jets of water) for AC and DC systems monitors.
\n
\n\Monitor\
\n• 2.8” Colour QVGA LCD display
\n• Input voltage 8-32VDC
\n• AC volts, amps, frequency and true power
\n
\n\Features\
\n• Three generic user configurable inputs
\n• Displays data in analogue, digital and graphic forms
\n• Output for load shedding
\n• Programmable high/low audio/visual alarms for each input
\n• Supplied Installation
\n
\n\Kit Includes\
\n• BLA Code 112888 – AC Voltage transducer for up to 3 voltage inputs
\n• BLA Code 112886 x 2 – AC current transformer
\n
\n[table id=2126 /]
\n
\n\Accessories\
\n55-600-ACSM-kit Conversion Kit – meter only + panel conversion
\n55-GAS-SM Spray Proof Gasket
