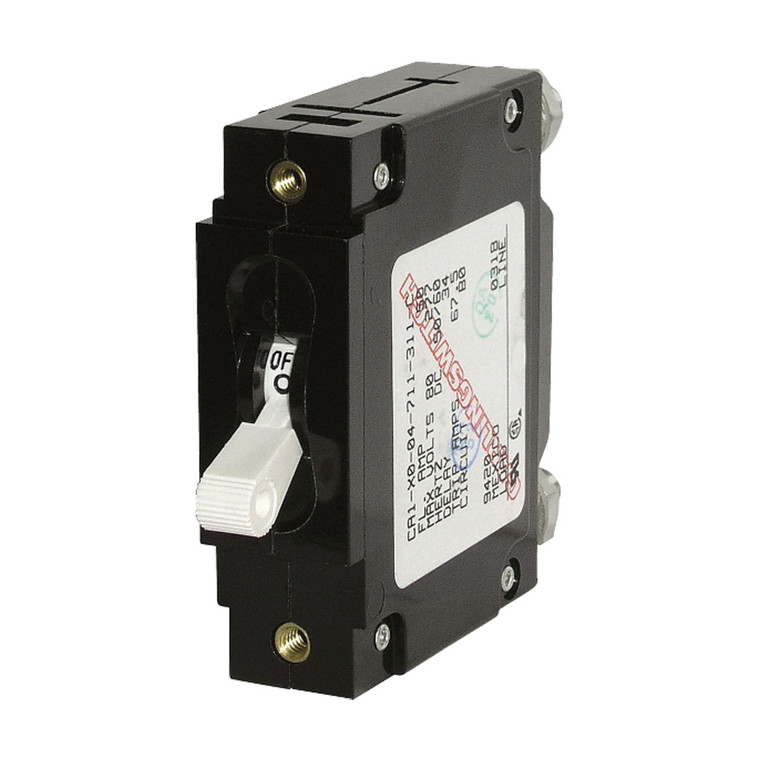

Blue Sea Systems C-Series White Toggle Circuit Breaker - Single Pole - 50A

Combines switching and circuit protection into a single device.

DC Features • Large frame provides stud termination for 5–300 Amp loads

Provides overcurrent protection for inverters, bow thrusters, and windlasses

Offers high interrupt capacity - suitable for

Main circuit protection

Trip Free - cannot be held closed after trip

AC Features • Frequently used for 120/240 Volt AC circuit protection

Double pole can be used as AC Main circuit breaker to switch hot  and neutral or two hots in 120/240 Volt AC Branch applications

Triple pole can be used as 120/240 Volt AC Main circuit breaker to switch both lines (hots) and neutral

Double and triple pole circuit breakers will trip all poles if any one pole trips

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: BS-7244

Please compare the product code and specifications with the required application before ordering.
