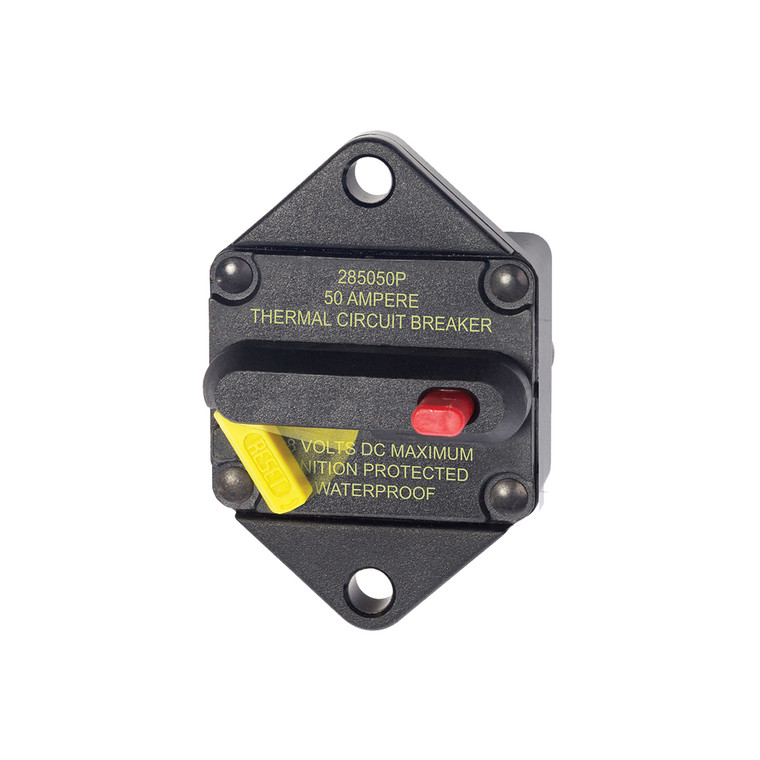

Blue Sea Systems 285 Series Circuit Breakers - BS-7083

Provides circuit protection for 25-150amp loads when switching and circuit protection are both required.
\n
\n• Visible yellow reset lever shows open condition
\n• Trip-free design cannot be held closed after trip
\n• Drop in replacement for 185 Series Circuit Breakers
\n• 3,000A AIC for medium battery banks
\n
\n\Specifications\
\n• Interrupting Capacity 3,000A @ 48V DC†
\n• Voltage Max. Operating 48V DC
\n• Temperature Min. Operating -40°C
\n• Temperature Max. Operating 85°C
\n• Type Thermal
\n• Class Type III – Switchable/Manual Reset – Trip Free
\n• Terminal Stud M6 (accepts 1/4" Ring Terminal)
\n• Terminal Stud Torque 50 in-lb (7.9 Nm)
\n• Mounting Hole Accepts 1/4" screw (M6)
\n
