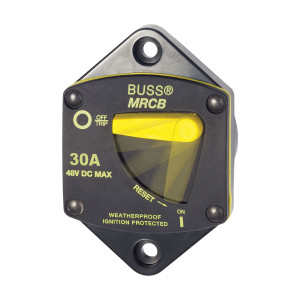

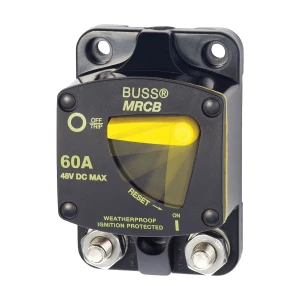

Blue Sea Systems 187 Series Circuit Breakers - BS-7038

Provides circuit protection for 25 to 200 amp loads when switching and circuit protection are both required\n\n\Features\\n• Self-trimming case eliminates need for mounting panels or trim bezels\n• Visible yellow reset lever shows open condition\n• Trip-free design cannot be held closed after trip\n• Recessed mounting holes for clean appearance\n\n\Specifications\\n• Interrupting Capacity 5,000A @ 12V DC, 3,000A @ 24V DC, 1,500A @ 42V DC\n• Voltage Max. Operating 48V DC\n• Temperature Min. Operating -40°C\n• Temperature Max. Operating 85°C\n• Type Thermal\n• Class Type III – Switchable/Manual Reset – Trip Free\n• Terminal Stud 5?16"-18\n• Terminal Stud Torque 75 in-lb max.\n• Trip Time Delay See bluesea.com\n• Mounting Hole Accepts #10 (M5) Screw\n\n[table id=2144 /]
