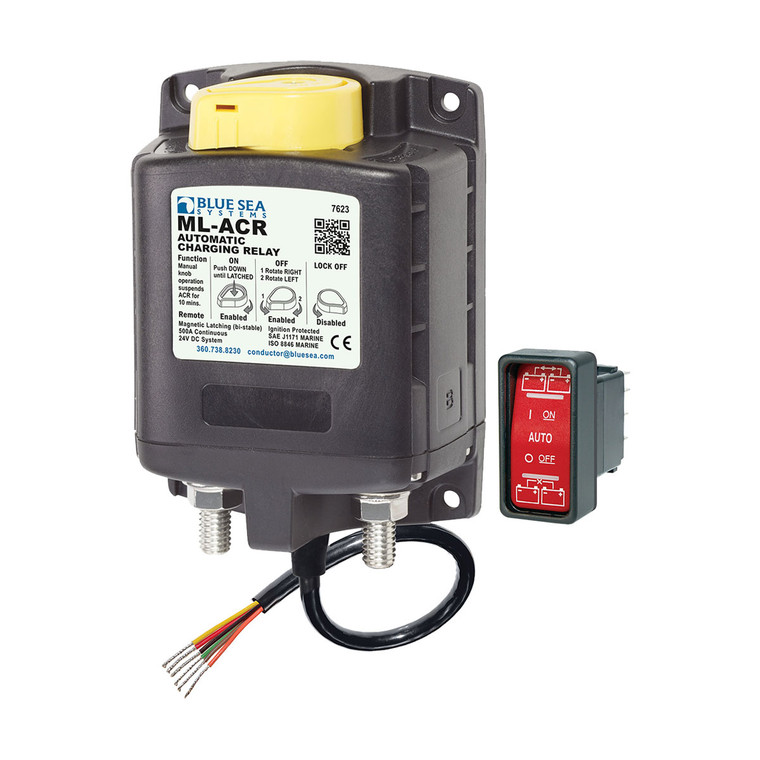

Blue Sea Systems ML-ACR Automatic Charging Relay - 500A - 24V

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.

Magnetic Latching (ML) relay draws very low current in the ON state

Start Isolation (SI) can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximise alternator output

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

Senses charging on two battery banks

LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch with integrated LED (included in retail package)

3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: BS-7623

Please compare the product code and specifications with the required application before ordering.
