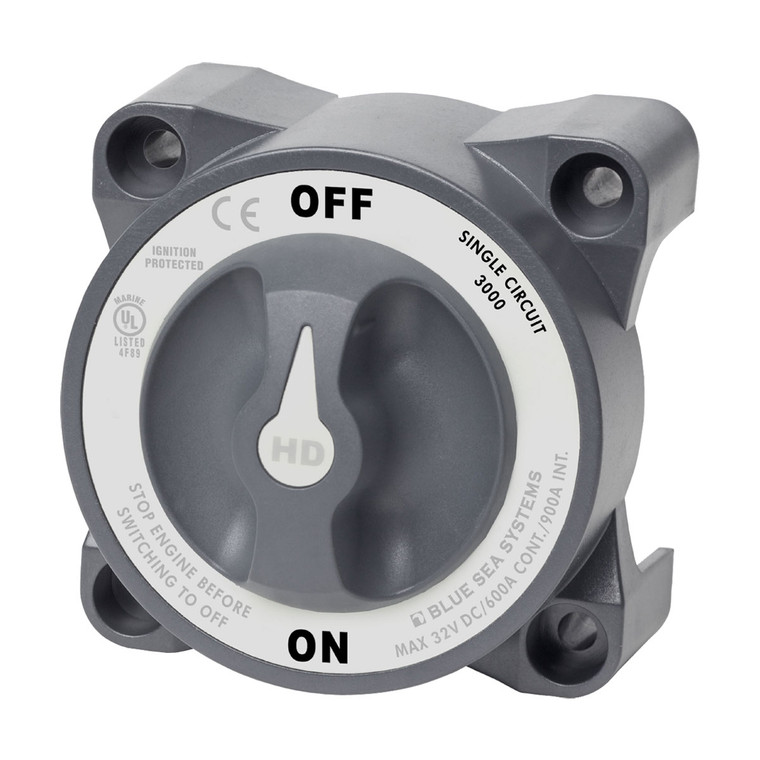

Blue Sea Systems HD-Series Battery Switch - On/Off - 600A

Up to 600 Amps continuous rating for large diesel engines. BS-3000 and BS-3001 HD-Series ON-OFF battery switches have three studs; one stud for the battery connections and two studs for the common load terminations.

Features • Tin-plated copper studs for maximum conductivity and corrosion resistance

Accepts up to 4/0 AWG (120 mm²) battery cables

Studs accept 1/2" (M12) ring terminals

7/8" (22 mm) stud length accepts multiple cable terminals

Fits most Perko and Guest low amperage battery switch hole patterns

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: BS-3000

Please compare the product code and specifications with the required application before ordering.
