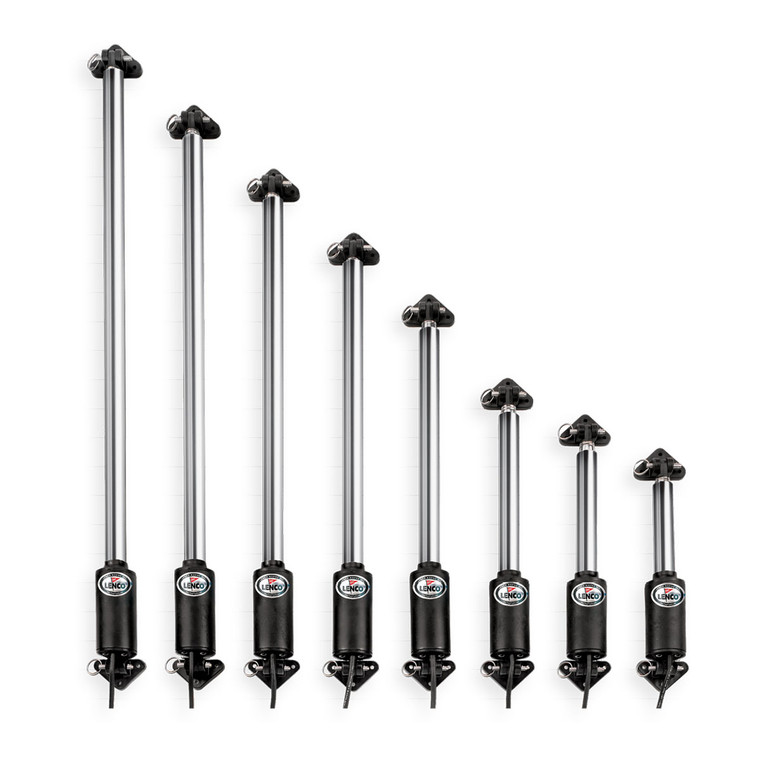

Lenco Electric Hatch Lift - 12V - 610mm Retracted / 915mm Extended

12 Intergrated harness. Inline motor design delivers over 226 kgs of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.

Features •  Clear anodised aluminium tubing

  200mm-610mm Stroke, other sizes and voltages available on request

  Complete with 61cm lead and Deutsch plug

  Clutchless ball screw design will not drift, never binds and runs in sync on dual actuator lift applications

  Inline motor design delivers over 500 lbs (227kg) of force

  Water resistant and made entirely of non-corrosive materials

  Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors

  High impact, corrosion proof mounting brackets with stainless steel pull pins

  Powdered metal gears for strength and precision

  Stainless steel ram locks in any position

  CE-certified, ignition protected and ABYC compliant

Accessories 312590 Stainless Steel Pull Pin

312592 Stainless Steel Slide Bracket

N.B. L.O.A = Length Overall, measuring from top bracket to bottom bracket 20 amp circuit breaker & 20 amp rated switch required.

Important: Specifications vary by product code. Confirm the required size or configuration before ordering.

Product code: 312558

Please compare the product code and specifications with the required application before ordering.
