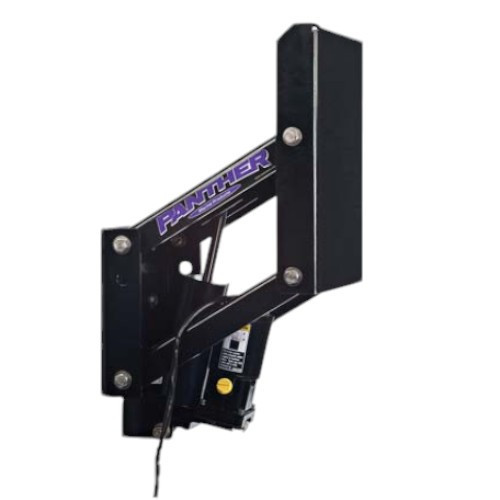

Panther Hydraulic Model 45 Outboard Motor Bracket - MT-550045A

The Panther Hydraulic Model 45 Outboard Motor Bracket - MT-550045A is a Panther marine product for the application or purpose described below.

Product information

• 55-0045A - Panther Hydraulic Model 45 Outboard Motor Bracket
• For clamp-on auxiliary motors up to 40HP and 250 lbs.
• With an impressive 15.5" of vertical lift, the Model 45 is perfect for boats where a big [up to 40 HP] kicker motor will be mounted to a tall transom.
• Rugged construction features 1/4" thick fabricated aluminum plates, heavy-duty black powder coat paint, and stainless steel hardware.
• This Electro/Hydraulic system includes all wiring (25 feet), relays, and a dash mounted rocker switch shown here.
• To provide adequate support for your Panther bracket, the transom side of the bracket must be 100% covered by the boat's transom.
• Height 14 inches [35.56 cm]
• Width 12 1/4 inches [31.12 cm]
• Motor Plate Dimensions
• Height 15 1/2 inches [39.37 cm]
• Width 12 1/4 [31.12 cm]
• Weight 42 lbs. [19.05 kg]
• Setback all the way up 19-1/2"
• Setback all the way down 13-1/4"
• Maximum setback of 14-3/4" can be achieved when the motor plate is lowered about 10-1/4" from all the way
• up, putting the support arms at 90 degrees to the transom plate.
• When in the fully raised position, the top of the motor plate is about 15.5" higher than the transom plate. When in the fully lowered position, the top of the motor plate is about even with the transom plate.

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
