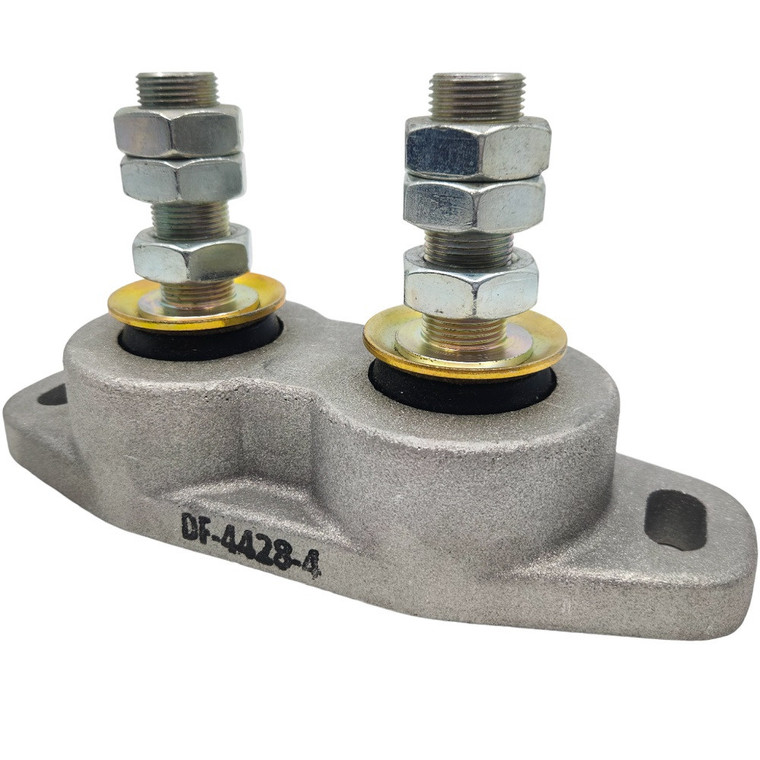

Marine Engine Mount - DF-4428-4

The Marine Engine Mount - DF-4428-4 is a Bushings Inc marine product for the application or purpose described below.

Product information

• Dual Flex Marine Mount - DF-4420 Series - DF-4428-4
• The Dual Flex DF-4420 Series of heavy duty mountings is a twin stud double mount designed principally for diesel engines in excess of 2268 up to 2721kg in weight.
• Sugested maximum engine weight per mount with 4 mounting feet: Up to 680kg per mount.
• DF-4428-4
• Length -275mm
• Width - 97mm
• Overall height - 142mm
• Minimum mounting height - 83mm
• Mounting bolt centres - 228mm
• Stud size - 1"
• Weight rating per mount - 453.5kg
• Weight rating per set - 1814kg
• These mounts are generally used on the "heavy (marine transmission) end" of the engine along with DF-4400 Series mounts on the front of the engine.
• Easy installation with full 1" threaded studs for vertical height and slotted casting for 3 3/4 horizontal adjustment.
• Aluminum base cast with 1/2" slotted mounting holes for 1/2" bolts or lag screws on 9" centers.
• Available in four size ratings dependant on engine/powertrain package weight.

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
