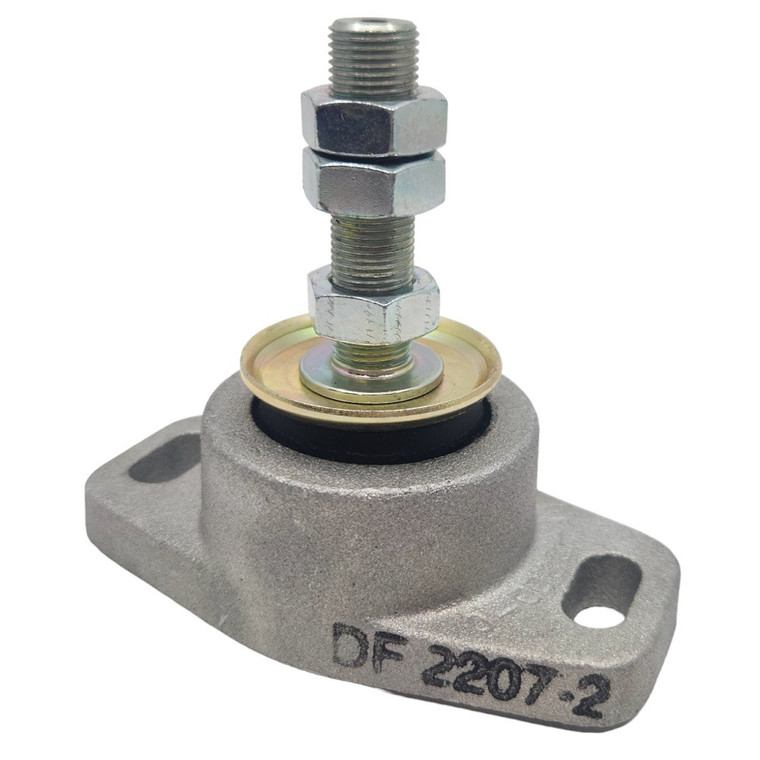

Marine Engine Mount - DF-2207-2

The Marine Engine Mount - DF-2207-2 is a Bushings Inc marine product for the application or purpose described below.

Product information

• Dual Flex Marine Mount - DF-2200 Series - DF-2207-2
• Suitable for Chris-Craft, Ford, Isuzu, Perkins, Volvo, Westerbeke & Yanmar engines
• Sugested maximum engine weight per mount with 4 mounting feet: Up to 85kg per mount.
• DF-2207-2
• Overall height - 114mm
• Minimum mounting height - 60mm
• Mounting bolt centres - 103mm
• Stud size - 5/8"
• Weight rating per mount - 85kg
• Weight rating per set - 340kg
• The Dual Flex DF-2200 Series features
• Heavy duty aluminum alloy construction with lip incorporated in the top of the casting to resist the upward pull of the engine.
• Durable oil and fuel resistant elastomer element raised above top of the casting to accommodate engine mounting angles.
• Easy installation with threaded stud for vertical height and slotted casting for horizontal adjustment.
• Aluminum base cast with 3/8" slotted holes for 3/8" bolts or lag screws.

Before ordering

Please compare the listed specifications and part number with your existing component. If you need help confirming compatibility, contact Jet Ski Parts Warehouse with your make, model, year and engine details.
