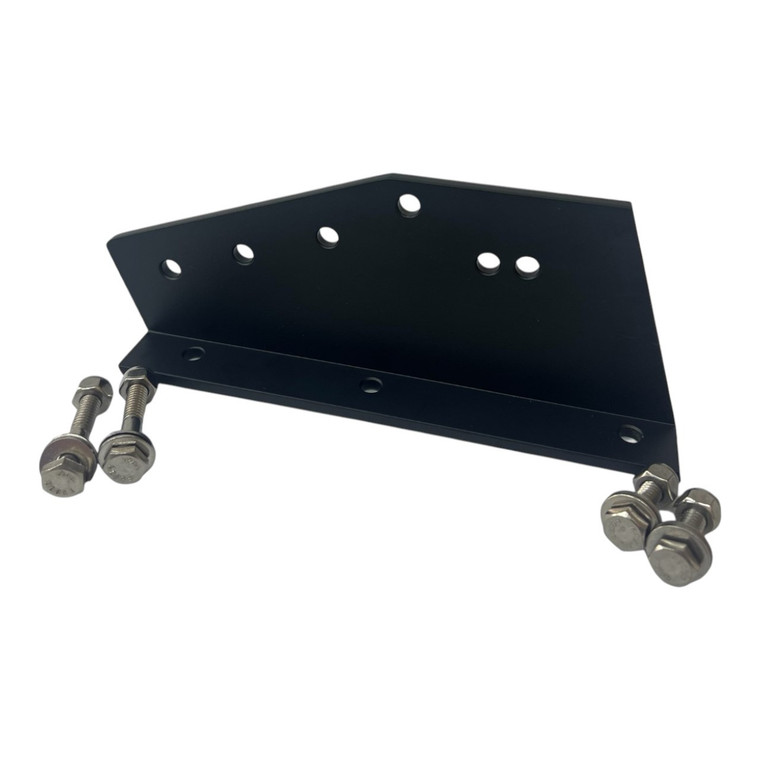

Atlas 8" to 12" Jack Plate L Bracket Transducer Shield Attachment Brackets - Starboard

The Atlas 8" to 12" Jack Plate L Bracket Transducer Shield Attachment Brackets - Starboard is a Transducer Shield and Saver marine product for the application or purpose described below.

Product information

• Atlas 8" to 12" Jack Plate L Bracket Transducer Shield Attachment Brackets
• Bracket to attach a Transducer Shield to the side of an Atlas Hydraulic 8, 10 and 12" Jack Plate. PLEASE make sure that your jack plate size and Transducer Shield is listed below. The larger transducers require our L Bracket with an "offset" or "spacer" to keep the trim rod from hitting the transducer.
• L Bracket is built in High Quality Aluminium Alloy, Black Powder Coated and includes Stainless Steel hardware.
• (1) A transducer cannot be attached to any of our L Brackets without a Transducer Shield. When placing your order for this product, please remember to choose the appropriate Transducer Shield to match your transducer.
• (2) An Extension is required if you have a Skeeter ZX model boat. On this particular boat, the hull turning chines interfere with the side viewing signal. To help correct this problem it is necessary to add an extension between the L Bracket and Transducer Shield to lower the transducer.
• TM-CMSI-7.1 to fit Humminbird HX 14 HW CMSI T
• TG-HG-8.5 to fit Garmin GT36 or GT56
• TS-DSS3-TS to fit Lowrance Structure Scan 3D or Total Scan
• TS-AIHD-TS to fit Lowrance 3-in-1 Active Image HD
• On some Skeeter Boat models, the turning chines and/or sponsons may interfere with the side viewing signal. For this reason, it is necessary to attach an extension between the L Bracket and Transducer Shield.
